MA16 - Engine Mountings

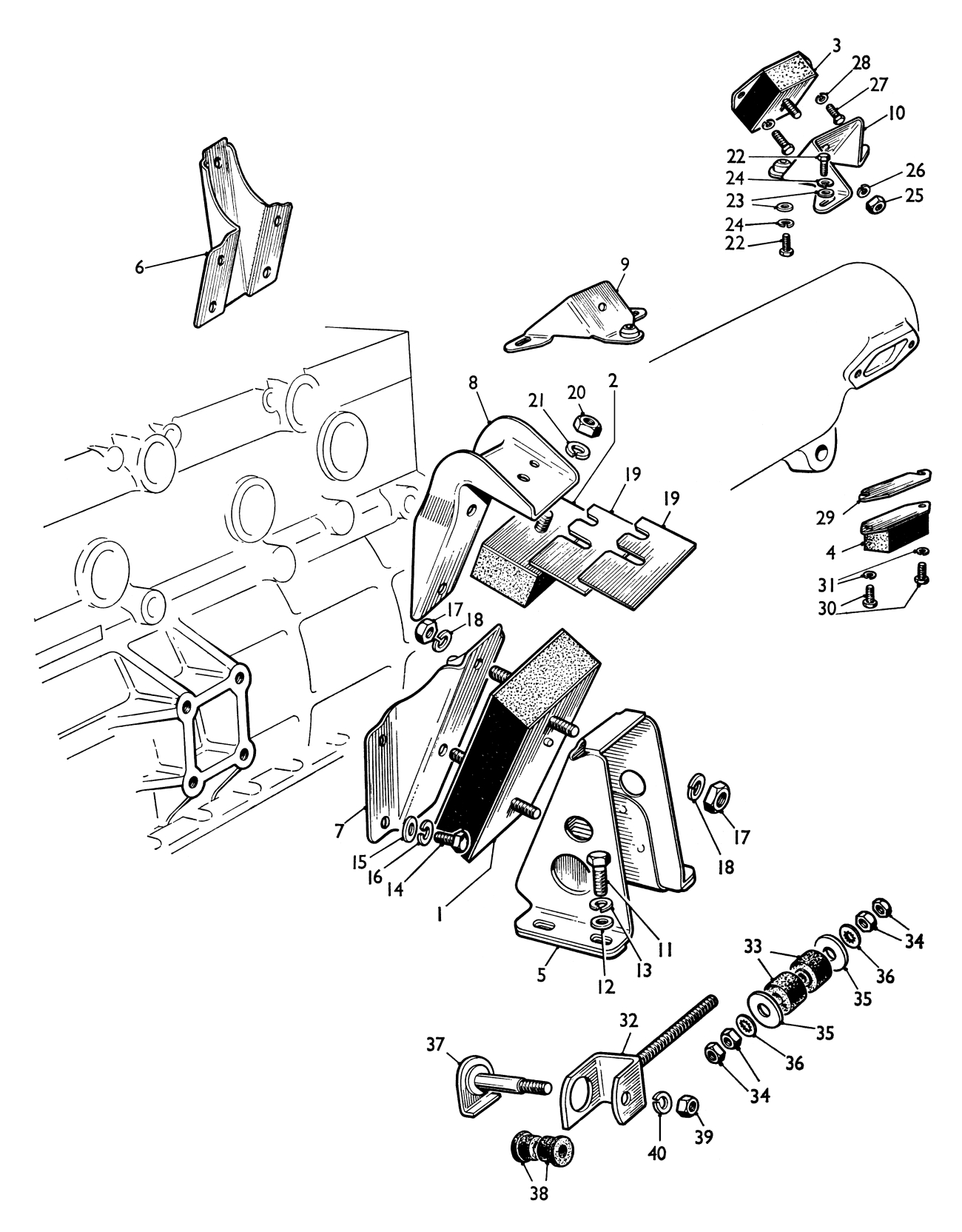

(Click on the image below to open a larger version in a new window)
| Description | Part No. | Illus. No. | Qty. | Change Point | Remarks |
|---|---|---|---|---|---|
| ENGINE MOUNTINGS | |||||
| Rubbers - engine mounting | |||||
| Front | ACB 9407 | 1 | 2 | ||
| Rebound - front | 1B 4428 | 2 | 2 | ||
| Rear | 11B 5074 | 3 | 2 | ||
| Rebound - rear | 1A 9209 | 4 | 1 | ||
| Brackets | |||||
| Front mounting to side-member | 11B 5188 | 5 | 2 | ||
| Front mounting to crankcase - RH | AEC 889 | 6 | 1 | ||
| Front mounting to crankcase - LH | AEC 890 | 7 | 1 | ||
| Rebound buffer | 1B 4422 | 8 | 2 | ||
| Rear mounting - RH | 11B 5113 | 9 | 1 | ||
| Rear mounting - LH | 11B 5115 | 10 | 1 | ||
| Screw - front mounting bracket to side-member | HZS 0607 | 11 | 8 | ||
| Washer - plain - screw | PWZ 106 | 12 | 8 | ||
| Washer - spring - screw | LWZ 206 | 13 | 8 | Correction; was LWZ 306 | |
| Screw - front mounting bracket to crankcase | HZS 0606 | 14 | 8 | ||
| Washer - plain - screw | PWZ 106 | 15 | 8 | ||
| Washer - spring - screw | LWZ 206 | 16 | 8 | ||
| Nut - front mounting rubber to bracket | FNZ 107 | 17 | 8 | ||
| Washer - spring - nut | LWZ 207 | 18 | 8 | ||
| Packing piece - front rebound rubber | 1B 1314 | 19 | A/R | ||
| Packing piece - front rebound rubber | 1B 1315 | 19 | A/R | ||
| Nut - rebound rubber to bracket | FNZ 105 | 20 | 2 | ||
| Washer - spring - nut | LWZ 205 | 21 | 2 | ||
| Screw - rear mounting bracket to frame | HZS 0505 | 22 | 6 | ||
| Washer - plain - screw | PWZ 105 | 23 | 6 | ||
| Washer - spring - screw | LWZ 205 | 24 | 6 | ||
| Nut - rear mounting rubber to bracket | FNZ 105 | 25 | 2 | ||
| Washer - spring - nut | LWZ 205 | 26 | 2 | ||
| Screw - rear mounting rubber to gearbox | HZS 0506 | 27 | 4 | ||
| Washer - spring - screw | LWZ 205 | 28 | 4 | ||
| Shim - rear rebound rubber | 1A 9211 | 29 | A/R | ||
| Screw - rear rebound rubber to gearbox | HZS 0405 | 30 | 2 | ||
| Washer - spring - screw | LWZ 304 | 31 | 2 | ||
| Tie-rod - engine | 1G 9382 | 32 | 1 | ||
| Bush - tie-rod (rubber) | 1B 8832 | 33 | 2 | ||
| Nut - tie-rod | FNZ 206 | 34 | 4 | ||
| Washer - plain - nut | PWZ 206 | 35 | 2 | Correction; was PWZ 106 | |
| Washer - shakeproof - nut | LWN 406 | 36 | 2 | ||
| Pin - hinge - tie-rod to gearbox | 1G 9384 | 37 | 1 | ||
| Bush - gearbox (rubber) | 1B 8347 | 38 | 2 | ||
| Nut - hinge pin | FNZ 106 | 39 | 1 | ||
| Washer - spring - nut | LWZ 306 | 40 | 1 |
