MC2 - Cooling System

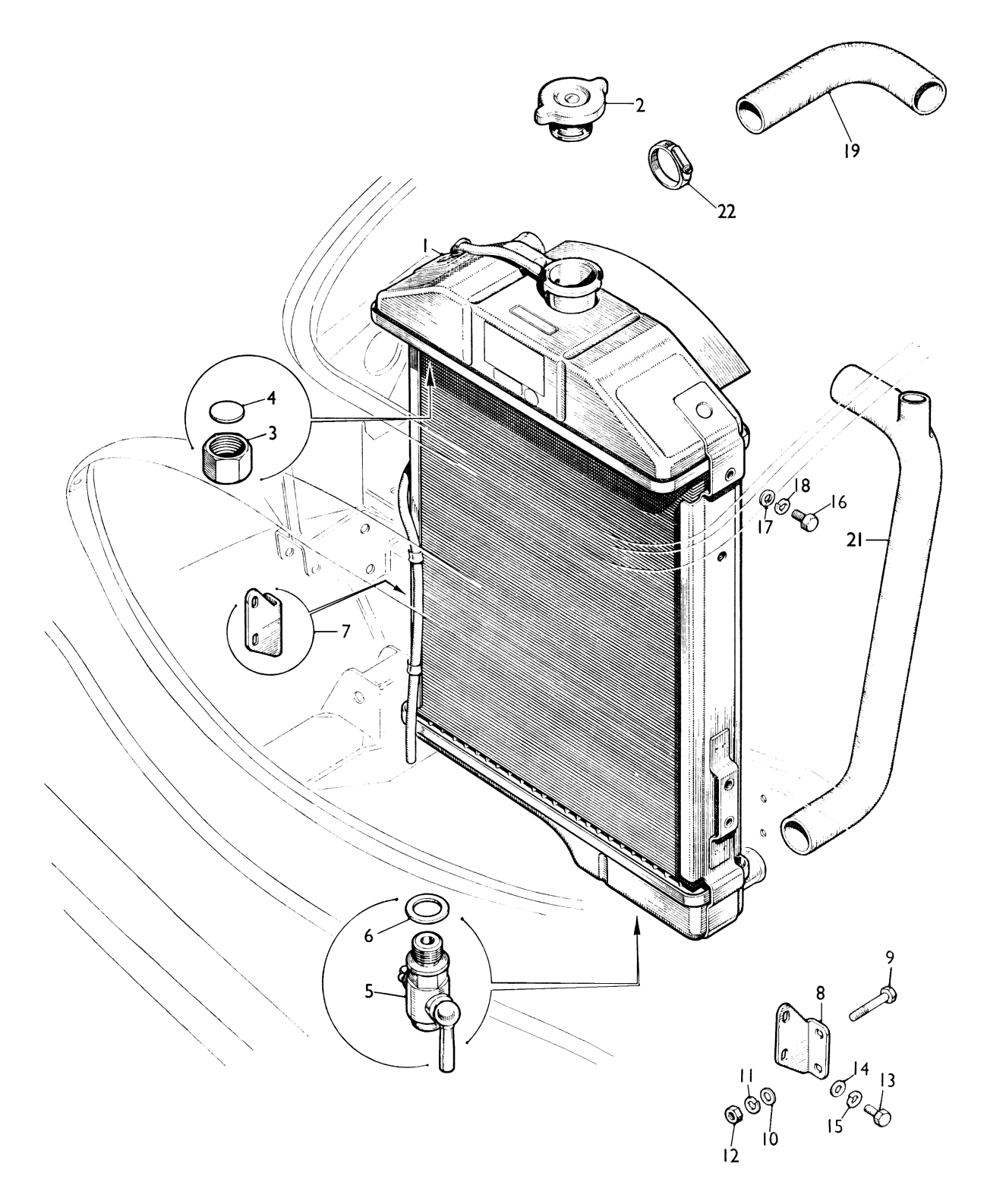

(Click on the image below to open a larger version in a new window)
| Description | Part No. | Illus. No. | Qty. | Change Point | Remarks |
|---|---|---|---|---|---|
| RADIATOR AND FITTINGS | |||||
| Radiator | AHB 8946 | 1 | 1 | ||
| Cap - filler | ARH 1542 | 2 | 1 | W.S.E; use ARH 1662 | |
| Cap - filler | ARH 1662 | 2 | 1 | ||
| Plug - header tank | AHB 5401 | 3 | 1 | ||
| Washer (fibre) | AHB 5402 | 4 | 1 | ||
| Tap - drain | 2H 10 | 5 | 1 | ||
| Washer - tap | 2K 4954 | 6 | 1 | Alternatives; use as required to align drain tap | |
| Washer - tap | 2K 4975 | 6 | 1 | ||
| Bracket - radiator support - RH | 11B 2118 | 7 | 1 | ||
| Bracket - radiator support - LH | 11B 2119 | 8 | 1 | ||
| Bolt - bracket to front suspension support | HBZ 0516 | 9 | 4 | ||
| Washer - plain | PWZ 105 | 10 | 4 | ||
| Washer - spring | LWZ 205 | 11 | 4 | ||
| Nut | FNZ 105 | 12 | 4 | ||
| Screw - radiator to support bracket | HZS 0505 | 13 | 4 | ||
| Washer - plain | PWZ 105 | 14 | 4 | ||
| Washer - spring | LWZ 205 | 15 | 2 | ||
| Screw - radiator to top fixing bracket | HZS 0505 | 16 | 2 | ||
| Washer - plain | PWZ 205 | 17 | 2 | ||
| Washer - spring | LWZ 205 | 18 | 2 | ||
| Hose - radiator | |||||
| Top | 11B 2115 | 19 | 1 | ||
| Bottom | AHB 8971 | 21 | 1 | When heater is fitted | |
| Clip - hose | HCS 1217 | 22 | 4 |
