MN3 - Switches

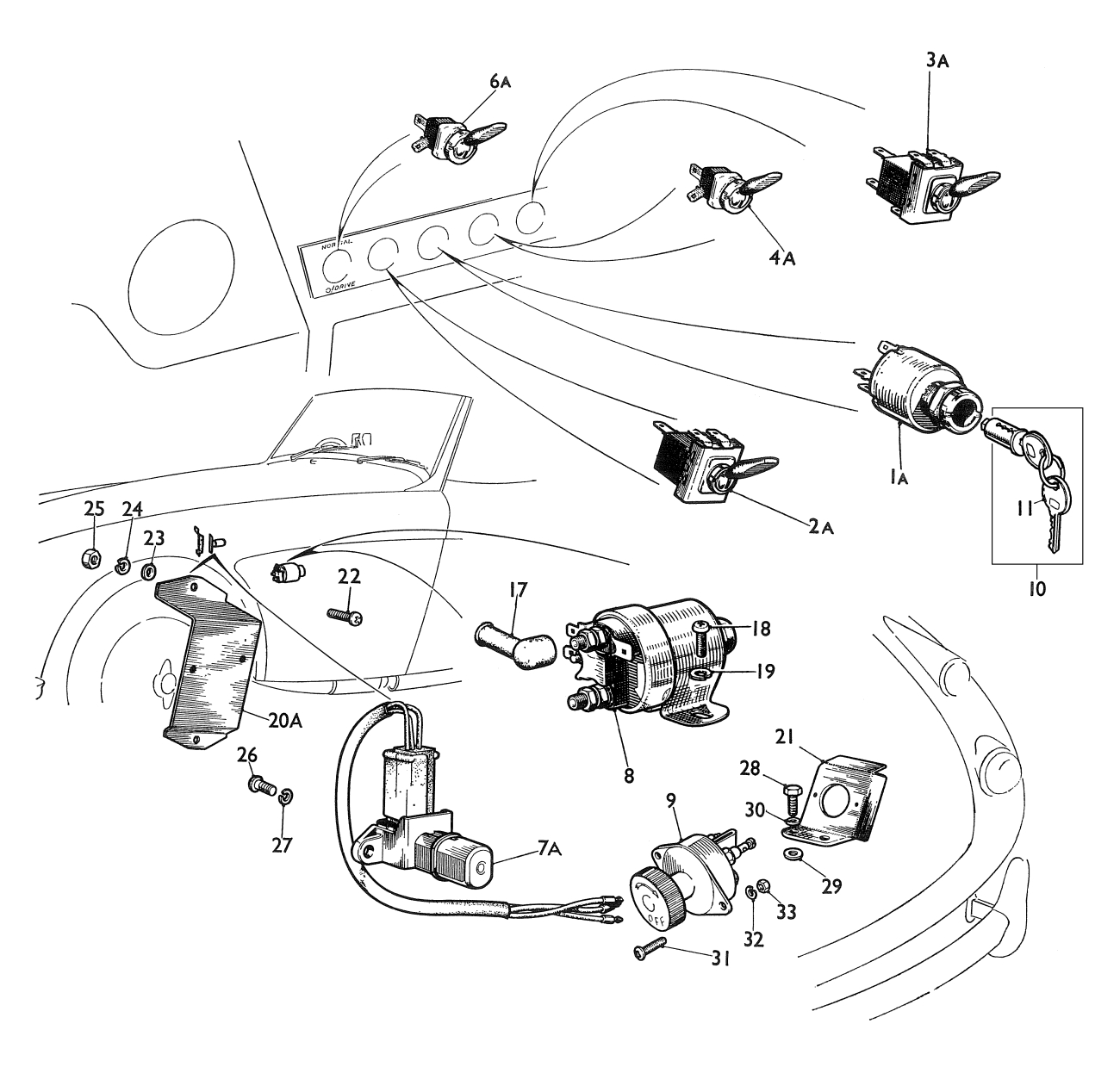

(Click on the image below to open a larger version in a new window)
| Description | Part No. Click | Illus. No. | Qty. | Change Point | Remarks |
|---|---|---|---|---|---|
| SWITCHES | |||||
| Switches | |||||
| Ignition and starter | 13H 337 | 1A | 1 | (C) H-BJ8-25315 on | |
| Windscreen wiper | BHA 4237 | 2A | 1 | (C) H-BJ8-25315 on | |
| Head and sidelamp | BCA 4294 | 3A | 1 | (C) H-BJ8-25315 on | |
| Panel light | BCA 4312 | 4A | 1 | (C) H-BJ8-25315 on | |
| Auxiliary or overdrive | BCA 4312 | 6A | 1 | (C) H-BJ8-25315 on | |
| Headlamp dipper | 88G 440 | 7A | 1 | (C) H-BJ8-25315 on | W.S.E. use 37H 2099 |
| Headlamp dipper | 37H 1366 | 7A | 1 | (C) H-BJ8-25315 on | Part No. change; was BHA 4438 |
| Headlamp dipper | 37H 2099 | 7A | 1 | (C) H-BJ8-25315 on | |
| Starter solenoid | BCA 4501 | 8 | 1 | W.S.E. use BMK 1727 | |
| Battery master | 1B 2804 | 9 | 1 | ||
| Lock - ignition switch | 27H 4185 | 10 | 1 | W.S.E. use 24G 1345 | |
| Lock - ignition switch | 24G 1345 | 10 | 1 | ||
| Key | ANK 4646 | 11 | 2 | ||
| Bootee - insulating - starter solenoid terminal | 8G 548 | 17 | 1 | ||
| Screw - starter solenoid switch to body | PMZ 0306 | 18 | 2 | ||
| Washer - spring - screw | LWZ 203 | 19 | 2 | ||
| Brackets | |||||
| Dipper switch | AHB 6504 | 20A | 1 | (C) H-BJ8-25315 on | |
| Battery master switch | 14B 6895 | 21 | 1 | ||
| Screw - dipper switch bracket to body | PMZ 0410 | 22 | 2 | ||
| Washer - plain screw | PWZ 104 | 23 | 2 | ||
| Washer - spring - screw | LWZ 204 | 24 | 2 | ||
| Nut - screw | FNZ 104 | 25 | 2 | ||
| Screw - dipper switch to bracket | PMZ 0308 | 26 | 2 | ||
| Washer - spring - screw | LWZ 203 | 27 | 2 | ||
| Screw - battery master switch bracket to body | HZS 0404 | 28 | 2 | ||
| Washer - plain - screw | PWZ 104 | 29 | 2 | ||
| Washer - spring - screw | LWZ 204 | 30 | 2 | ||
| Screw - battery master switch to bracket | PMZ 0207 | 31 | 2 | ||
| Washer - spring - screw | LWZ 302 | 32 | 2 | ||
| Nut - screw | CNZ 102 | 33 | 2 |
