 MN4 - Control Box, Fusebox, & Switches (Throttle & Overdrive)

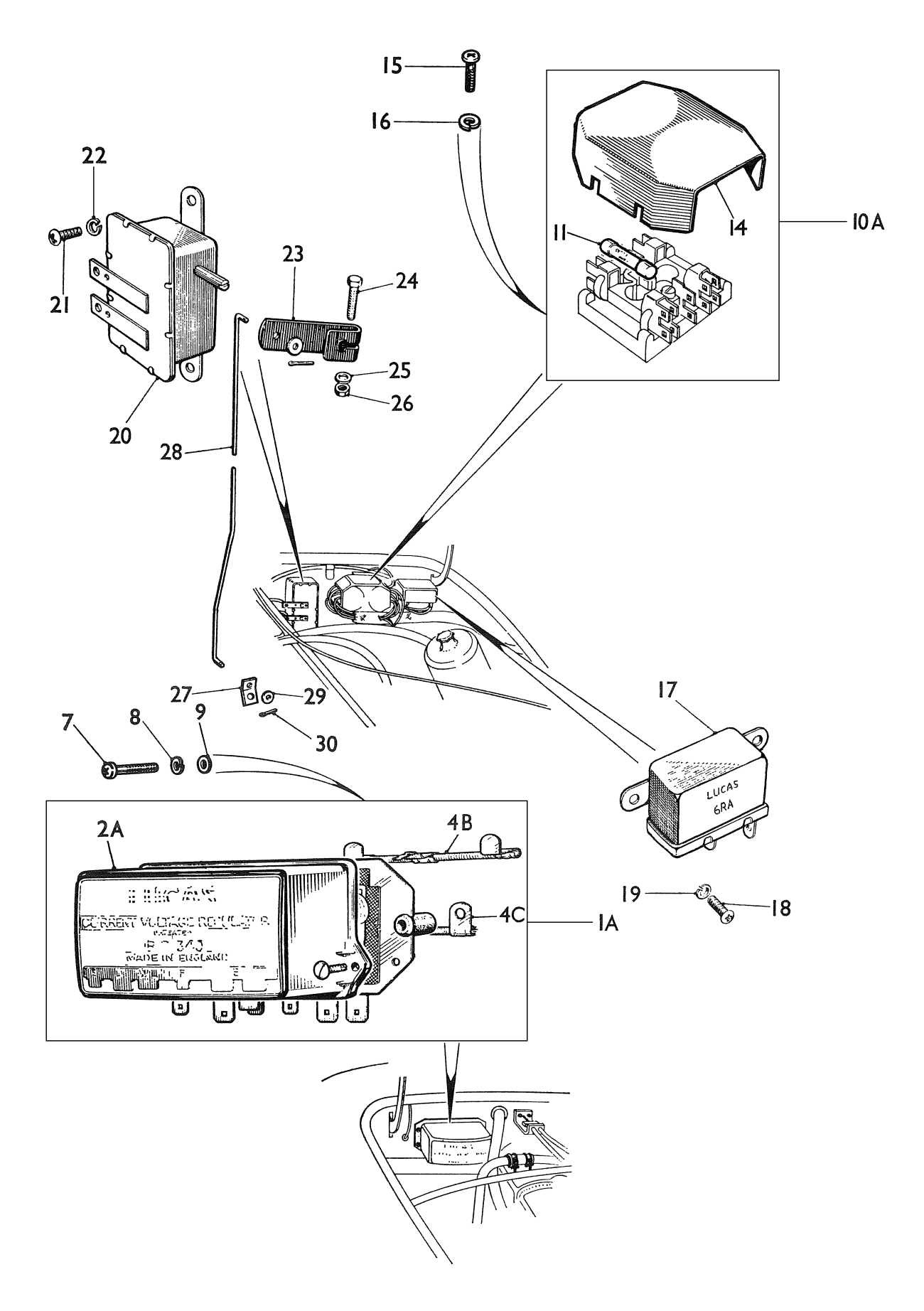

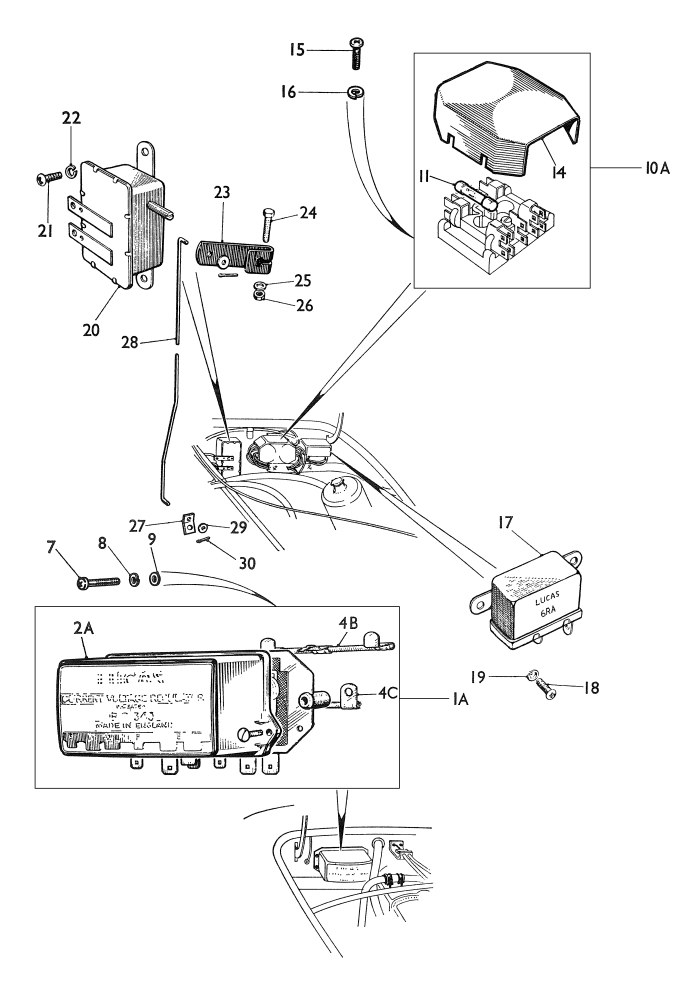

(Click on the image below to open a larger version in a new window)

DescriptionPart No.Illus. No.Qty.Change PointRemarks

Box - controlBCA 46631A1(C) H-BJ8-25315 on
   Cover57H 53982A1(C) H-BJ8-25315 onW.S.E. use 27H 5873
   Cover27H 58732A1(C) H-BJ8-25315 on
   Resistance - 55 ohms57H 53964B1(C) H-BJ8-25315 on
   Resistance - 40 ohms57H 53974C1(C) H-BJ8-25315 on
Screw - control box to dashPMZ 031873(C) H-BJ8-25315 on
Washer - spring - screwLWZ 20383(C) H-BJ8-25315 on
Washer - plain - screwPWZ 10393(C) H-BJ8-25315 on
Box - fuse13H 25210A1(C) H-BJ8-25315 on
   Fuse - 35 amp7H 5067114(C) H-BJ8-25315 on
   Cover47H 5212141(C) H-BJ8-25315 on
Screw - fuse box to dashPMZ 0310152(C) H-BJ8-25315 on
Washer - spring - screwLWZ 203162(C) H-BJ8-25315 on
Relay - overdriveBMK 685171(C) H-BJ8-25315 on
Screw - relay to dashPMZ 0308182
Washer - springLWZ 203192
Switch - throttle1B 2837201
Screw - overdrive throttle switch to dashPMZ 0308212
Washer - spring - screwLWZ 203222
Lever - throttle switch11B 2163231
Bolt - lever to throttle switch53K 129241
Washer - plain - boltPWZ 103252
Nut - boltFNZ 103261
Eye - throttle switch link1B 2721271
Link - throttle switchAHB 9053281
Washer - plain - linkPWZ 102292
Split pin - link2K 1381302
